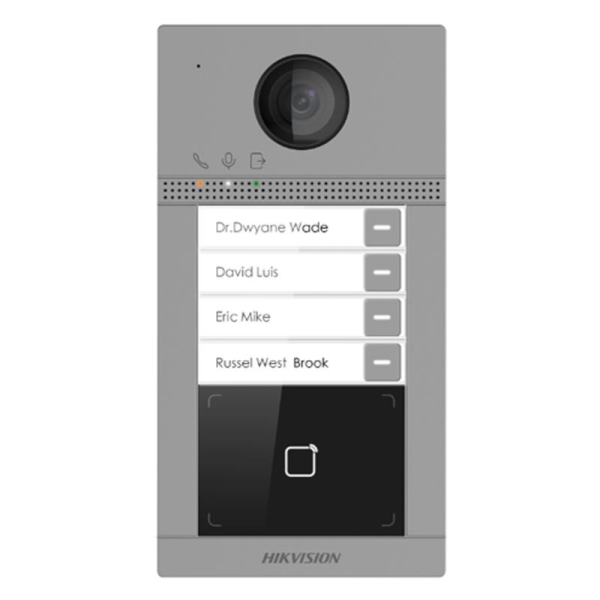

ინტერკომი DS-KV8413-WME1(C)/Flush

აღწერა ინტერკომი DS-KV8413-WME1(C)/Flush

• System parameters
• Operation systemLinux
• ROM32 MB
• RAM256 MB
• ProcessorEmbeded high performance processor

• Display parameters
• Screen size/
• Operation method/
• Type/
• Resolution/

• Video parameters
• Lens1
• Resolution

  Main stream:1920 × 1080p and 1280 × 720p

  Sub stream: 640 × 480p

• FOVHorizontal: 124° Vertical: 75°
• Wide dynamic range (WDR)Digital WDR/76.9 dB
• Supplement lightIR light, up to 3 m
• Video compression standardH.264; h.265; MJPEG

• Audio parameters
• Audio input1 built-in omnidirectional microphone
• Audio compression standardG.711 U、G.711 A、Opus、AAC-LD、AAC-LC、G.726、G.722.1
• Audio output1 built-in loudspeaker
• Audio compression bitrate64 Kbps
• Audio qualityNoise suppression and echo cancellation
• Volume adjustmentAdjustable

• Capacity
• User capacity2000
• Card capacity10000
• Linked indoor station capacity4(main indoor station)
• Sub door station capacity16

• Network parameters
• Network protocolTCP/IP, RTSP, ipv6, onvif
• Wi-FiIEEE802.11b, IEEE802.11g, IEEE802.11n
• Bluetooth/
• 3G/4G/
• Received frequency2.4 to 2.4835 GHz
• Transmitted frequency2.4 to 2.4835 GHz
• Bandwidth20/40 MHz
• Frequency power

  802.11b:15 dBm +/- 1.5 dBm

  802.11g:15 dBm +/- 1.5 dBm

  802.11n(ht20):14 dBm +/- 1.5 dBm

  802.11n(ht40):12 dBm +/- 1.5 dBm

• Authentication
• Card reading frequency13.56 MHz

• Device interfaces
• Alarm input4
• Network interface1 RJ-45, 10/100 Mbps self-adaptive
• TAMPER1
• Exit button2
• RS-4851
• USB/
• Wiegand/
• TF cardReserved
• Alarm output/
• Lock control2 relays, Max. 30 VDC 2 A
• Door contact input2

• General
• Button4 physical buttons
• >span class="tech-specs-items-description__title-details">Flush mounting
• Indicator3
• Weight

  Net weight: 0.350 kg

  Gross weight: 0.658 kg

• Protective levelIP65, IK08
• Working temperature-40 °C to 53 °C(-40 °F to 127.4 °F)
• Working humidity10% to 95% (no-condensing)
• Dimension (W × H × D)174 mm × 91 mm × 29 mm (6.9" × 3.6" × 1.1")
• Battery/
• Application environmentOutdoor
• Power consumption＜ 10 W
• LanguageEnglish, Arabic, European French, Russian, European Spanish, Latin American Spanish, Italian, German, Polish, Turkish, Portuguese, Brazilian Portuguese, Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese (Taiwan), Latin American Spanish
