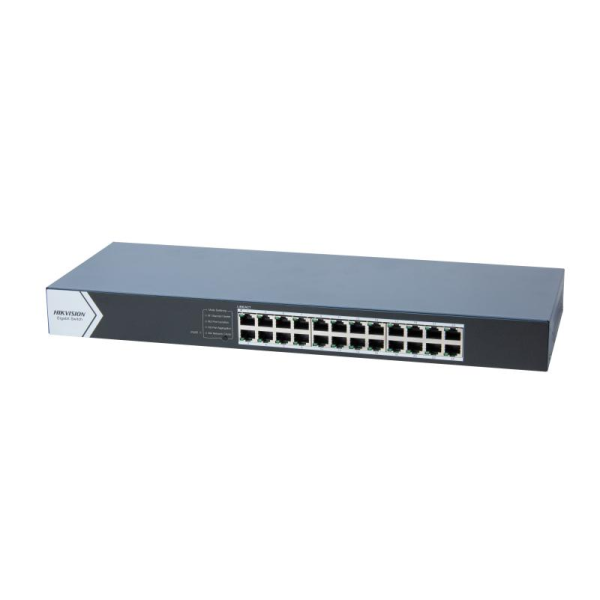

სვიჩი DS-3E0524-E(C) 24-Port Gigabit Switch

აღწერა სვიჩი DS-3E0524-E(C) 24-Port Gigabit Switch

General

• ShellMetal material, fan-free design
• Net Weight1.4 kg (3.1 lb)
• Gross Weight1.9 kg (4.2 lb)
• Dimensions (W × H × D)440.00 mm × 44.00 mm × 160.00 mm (17.32'' × 1.73'' × 6.30'')
• Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
• Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
• Operating Humidity5% to 95% (no condensation)
• Relative Humidity5% to 95% (no condensation)
• Power Supply100-240 VAC, 50/60 Hz, Max. 0.7 A
• Max. Power Consumption18 W
• Power Consumption in Idle3.8 W
• >span class="tech-specs-items-description__title-details">Rack (equipped with mounting ears)
• Surge Protection6 KV

Network Parameters

• Ports24 × Gigabit RJ45 port
• MAC Address Table8 K
• Switching Capacity48 Gbps
• Packet Forwarding Rate35.71 Mpps
• Internal Cache4.1 Mbits

Approval

• EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),RCM (AS/NZS CISPR 32: 2015)
• SafetyCE-LVD (EN 62368-1: 2014+A11: 2017),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)
• ChemistryCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
