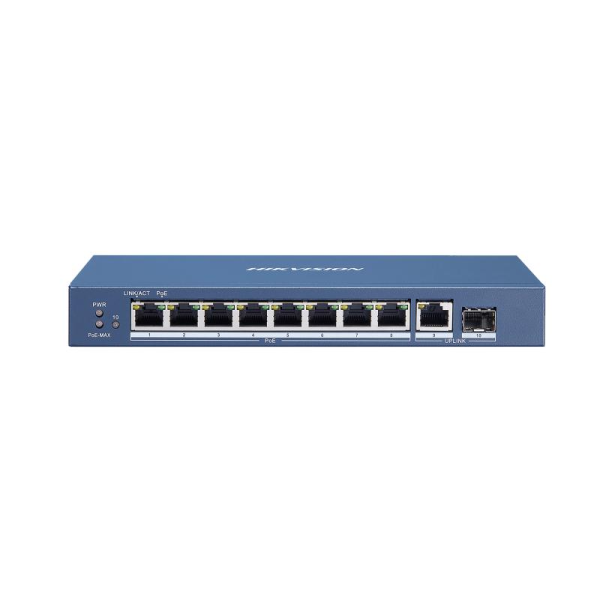

სვიჩი POE DS-3E0510P-E(O-NEU)

აღწერა სვიჩი POE DS-3E0510P-E(O-NEU)

• ShellMetal material, fan-free design
• Net Weight0.6 kg (1.32 lb)
• Gross Weight1.4 kg (3.09 lb)
• Dimensions (W × H × D)217.6 mm × 27.8 mm × 108.55 mm (8.6'' × 1.1'' × 4.3'')
• Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
• Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
• Operating Humidity5% to 95% (no condensation)
• Relative Humidity5% to 95% (no condensation)
• Power Supply48 VDC, 2.5 A
• Max. Power Consumption120 W
• Power Consumption in Idle10 W
• >span class="tech-specs-items-description__title-details">Desk-Mounted,Wall-Mounted;
• Surge Protection6 KV

• Network Parameters
• Ports8 × Gigabit PoE port,1 × Gigabit RJ45 port,1 × Gigabit fiber optical port
• MAC Address Table4 K
• Switching Capacity20 Gbps
• Packet Forwarding Rate14.88 Mpps
• Internal Cache1.5 Mbits

• PoE Power Supply
• PoE StandardIEEE 802.3af,IEEE 802.3at
• PoE Power PinEnd-span: 1/2(+), 3/6(-)
• PoE PortPoE: Ports 1 to 8
• Max. Port Power30 W
• PoE Power Budget110 W

• Approval
• EMCFCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
• SafetyUL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
• ChemistryCE-RoHS (2011/65/EU)
