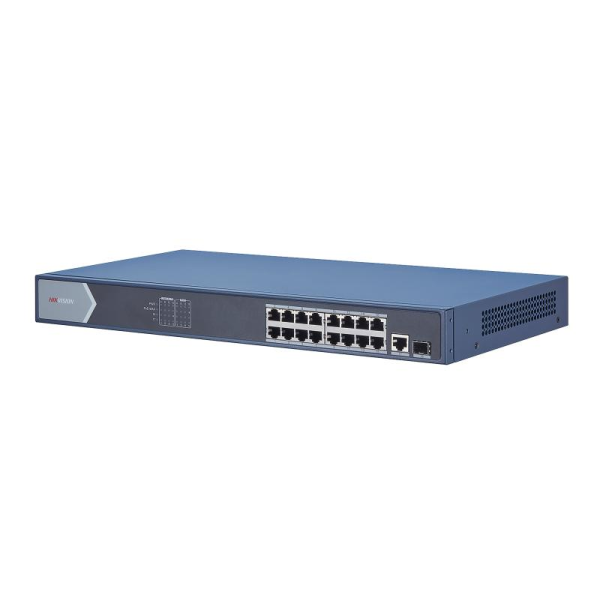

სვიჩი POE DS-3E0518P-E

აღწერა სვიჩი POE DS-3E0518P-E

• General
• ShellMetal material
• Net Weight2.67 kg (5.89 lb)
• Gross Weight3.53 kg (7.78 lb)
• Dimensions (W × H × D)440.0 mm × 44.0 mm × 220.8 mm (17.3'' × 1.7'' × 8.7'')
• Operating Temperature–10 °C to 55 °C (14 °F to 131 °F)
• Storage Temperature–40 °C to 85 °C (–40 °F to 185 °F)
• Operating Humidity5% to 95% (no condensation)
• Relative Humidity5% to 95% (no condensation)
• Power Supply100~240 VAC, 50/60 Hz, Max. 4 A
• Max. Power Consumption250 W
• Power Consumption In Idle20 W
• Surge Protection6 KV

• Network Parameters
• Ports16 × Gigabit PoE port,1 × Gigabit RJ45 port,1 × Gigabit fiber optical port
• MAC Address Table8 K
• Switching Capacity36 Gbps
• Packet Forwarding Rate26.784 Mpps
• Internal Cache4.1 Mbits

• PoE Power Supply
• PoE StandardIEEE 802.3af,IEEE 802.3at
• PoE Power PinEnd-span: 1/2(+), 3/6(-)
• PoE PortPoE: Ports 1 to 16
• Max. Port Power30 W
• PoE Power Budget230 W

• Approval
• EMCFCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
• SafetyUL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
• ChemistryCE-RoHS (2011/65/EU)
