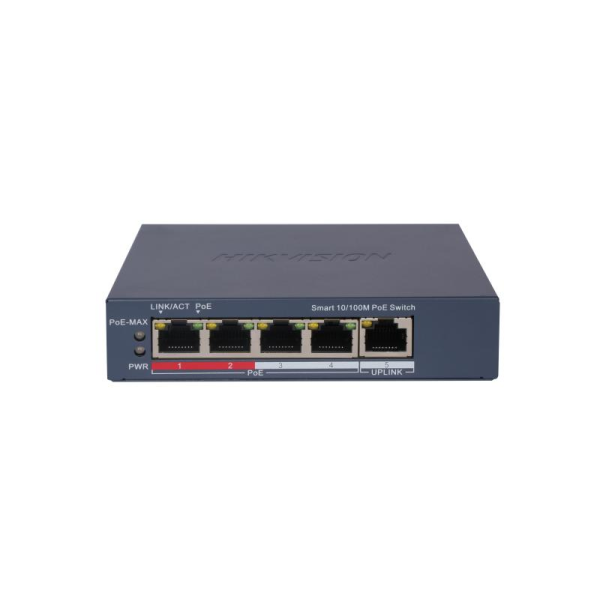

სვიჩი POE DS-3E1105P-EI,4 Port Fast Ethernet Smart POE Switch

აღწერა სვიჩი POE DS-3E1105P-EI,4 Port Fast Ethernet Smart POE Switch

• General
• ShellMetal material
• Net Weight0.26 kg (0.573 lb)
• Gross Weight0.75 kg (1.65 lb)
• Dimensions (W × H × D)121.1 mm × 27.6 mm × 83.1 mm (4.77'' × 1.09'' × 3.27'')
• Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
• Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
• Operating Humidity5% to 95% (no condensation)
• Relative Humidity5% to 95% (no condensation)
• Power Supply54VDC, 1.2A
• >span class="tech-specs-items-description__title-details">Desk-Mounted,Wall-Mounted
• Max. Power Consumption65 W
• Power Consumption in Idle0.9 W
• Surge Protection6 KV

• Network Parameters
• Ports4 × 10/100 Mbps PoE port,1 × 10/100 Mbps RJ45 port
• MAC Address Table2 K
• Switching Capacity1 Gbps
• Packet Forwarding Rate0.74 Mpps
• Internal Cache768 Kbits

• PoE Power Supply
• PoE StandardIEEE 802.3af,IEEE 802.3at
• PoE Power PinEnd-span: 1/2(-), 3/6(+)
• PoE PortPoE: Ports 1 to 4
• Max. Port Power30 W
• PoE Power Budget60 W

• Software Function
• Long Range

  Ports 1 to 4: up to 300 m.

  Long range performance may vary depend on camera model or cable condition.

• VIP PortPorts 1 to 2: data on VIP ports is preferentially forwarded when bandwidth resources are insufficient.
• Port Isolation

  Ports 1 to 4: port isolation mode to improve network security

  Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.

• PoE WatchdogPorts 1 to 4: auto detect and restart the cameras that do not respond.
• Link Aggregation

  Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection.

  Support static link aggregation.

  Support 1 aggregation group(s).

• Loop Prevention

  Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.

  Support 802.1D STP.

  Suppport 802.1w RSTP.

• VLAN

  VLAN is used for network scale planning and network health improvement.

  Support 802.1Q.

  Configurable VLAN ID from 1-4094.

  Support Trunk, Access port mode.

  Support Max. 32 VLAN.

• HPP

  Support one-click activation and remote management via Hik-Partner Pro. Functions supported:

  1. Display the port rate.

  2. Display the port bandwidth utilization rate.

  3. Display the PoE power usage.

  4. Display topology information.

  5. Display the alarm status.

  6. Restart ports and devices.

  7. Enable port long-rage mode.

  8. Remotely upgrade the device.

• System Maintenance

  Support device management via web.

  Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.

  Support Super IP, which is a fixed IP address (10.180.190.200) for direct access.

  Support management via Hik-Central Pro.

  Support remote management via Hik-Partner Pro.

  Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected.

  Supports 802.1ab LLDP for peer device discovery.

  Support SNMP v1/v2c for third-party management platform access.

  Support port mirroring for fault locating.

• Approval
• EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
• SafetyCB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
• ChemistryCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
