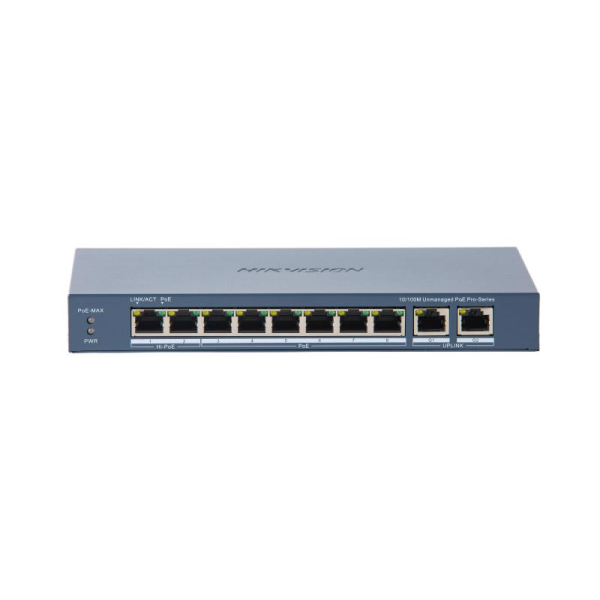

სვიჩი Poe Hikvision,DS-3E0310HP-E(C)

აღწერა სვიჩი Poe Hikvision,DS-3E0310HP-E(C)

• General
• ShellMetal material, fan-free design
• Net Weight0.56 kg (1.23 lb)
• Gross Weight1.27 kg (2.79 lb)
• Dimensions (W × H × D)217.6 mm × 27.6 mm × 108.5 mm (8.57'' × 1.09'' × 4.27'')
• Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
• Storage Temperature–40 °C to 85 °C (–40 °F to 185 °F)
• Operating Humidity5% to 95% (no condensation)
• Relative Humidity5% to 95% (no condensation)
• Power Supply54 VDC,2.22 A
• Max. Power Consumption120 W
• Power Consumption in Idle< 10 W
• >span class="tech-specs-items-description__title-details">Desk-Mounted
• Surge Protection6 KV

• Network Parameters
• Ports8 × 10/100 Mbps PoE port,2 × Gigabit RJ45 port
• MAC Address Table4 K
• Switching Capacity5.6 Gbps
• Packet Forwarding Rate4.17Mpps
• Internal Cache2Mbits

• PoE Power Supply
• PoE Standard

  Ports 1 and 2: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt

  Ports 3 to 8: IEEE 802.3af, IEEE 802.3at

• PoE Power Pin

  Ports 1 to 2: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)

  Ports 3 to 8: End-span: 1/2(-), 3/6(+)

• PoE Port

  Hi-PoE: Ports 1 to 2

  PoE: Ports 3 to 8

• Max. Port Power

  Ports 1 and 2 : 90 W

  Ports 3 to 8: 30 W

• PoE Power Budget110 W

• Dialing Function
• Long Range

  Ports 1 to 8: up to 300 m.

  Long range performance may vary depend on camera model or cable condition.

• Port IsolationPorts 1 to 8: port isolation mode to improve network security.
• PoE WatchdogPorts 1 to 8: auto detect and restart the cameras that do not respond.

• Approval
• EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
• SafetyUL (UL 62368-1); CB (IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2029)
• ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2018)
