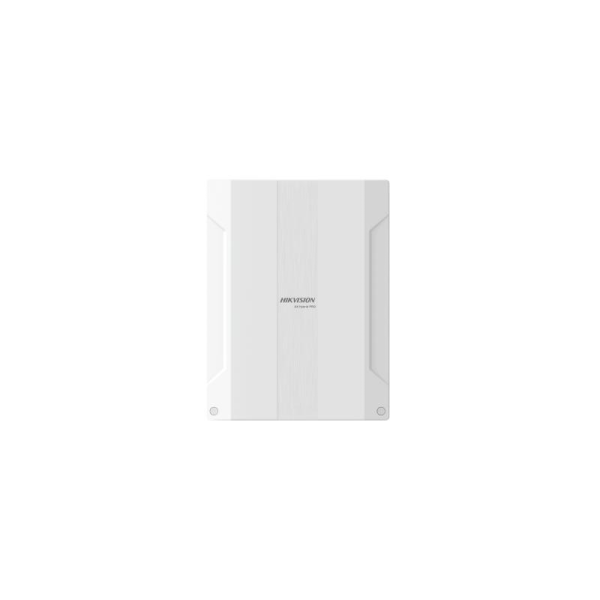

სიგნალიზაციის საკონტროლო პანელი DS-PHA48-EP(B)

აღწერა სიგნალიზაციის საკონტროლო პანელი DS-PHA48-EP(B)

• Software features
• Zones48(8 on-board zones, max 4 wired PIRCAM)
• Area16
• User

  Installer: 1

  Administrator: 1

  Operator: 46

• SMS notificationSupports (with GPRS/3G/4G module)
• Onboard video clips2
• ARC protocol

  ISAPI: Supports iVMS-4200 client software and web client

  Cloud P2P: Supports cloud P2P privacy protocol

  DC-09: ARC accessible (ADM-CID/SIA-DCS)

  CSV-IP: Supports CSV-IP

  ISUP: Supports ISUP 5.0

• Programming toolsWeb/iVMS-4200/Hik-ProConnect/Hik-ProConnect
• Firmware upgradeWeb/iVMS-4200/Hik-ProConnect
• End of Line ResistanceSupport 1K, 2.2K, 4.7K, 5.6K, 6.8K, 8.2K

• Hardware features
• Alarm input48 (8 on-board zones)
• Alarm output48(Including 2 on-board relay outputs and 2 I/O outputs)
• Power Output

  1. Bell: maximum 12V 1.2A

  2. AUX: maximum 12V 1.5A

  3. Bell and AUX maximum 12V 2.1A

• 3/4G on boardOptional
• GPRS on boardOptional
• Bus1 Speed-X bus
• Sounder output1 wired on-board sounder output
• Tamper-Proof

  1 switch to detect removal from mounting

  1 switch to detect front cover open

• Netowrk interface1 RJ45 10M/100M Ethernet interface

• Display
• Indicator

  4 on-board LEDs

  1. 1 AC power LED indicator (Green)

  2. 1 system status LED indicator (Green/Red)

  3. 1 PSTN status LED indicator (Green/Red)

  4. 1 mobile communication status LED indicator (Green/Red)

• Electrical characteristics
• Power interface100 to 240 VAC (On-board power transformer)
• Power Consumption

  1. 220V power supply

  (1) With an alarm: 1.875A, 30W

  (2) Without an alarm: 200mA, 3.2W

  2. 13.5V battery supply

  (1) With an alarm: 1.5A, 22W

  (2) Without an alarm: 150mA, 2W

• Battery typeLead acid battery (12 V, 7 Ah, battery is not included by default)
• Battery life spanUp to 36hrs

• General
• Operation temperature-10°C to 40°C
• Operation humidity10% to 90>#/span###
• Shell materialPlastic
• ColorWhite
• Dimension(WxHxD)261 mm × 199 mm × 86.4 mm
• 996.5 g

• Device management
• Tag48
• Keyfob48
• Keypad4
• Wireless sounder8
