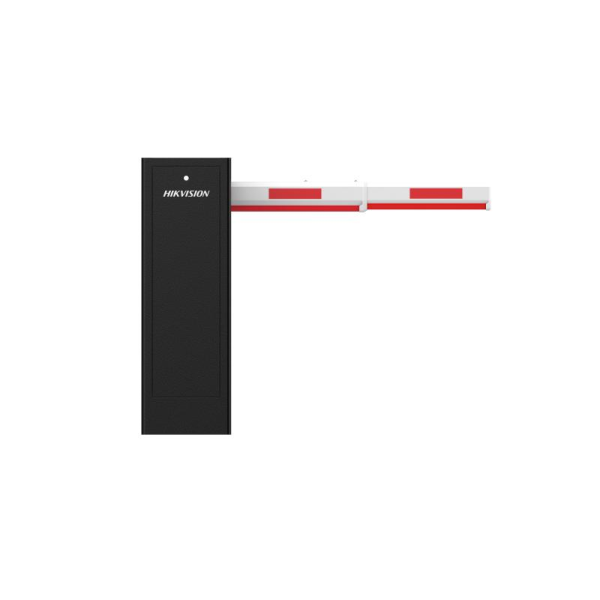

შლაგბაუმი, Hikvision, DS-TMG300-DL(3.4~6m telescopic)

აღწერა შლაგბაუმი, Hikvision, DS-TMG300-DL(3.4~6m telescopic)

• arrier Housing
• Barrier Housing MaterialCold-rolled sheet
• Barrier Housing Thickness1.2 mm
• Barrier Housing Door Thickness1.0 mm
• Barrier Housing ColorBlack background with sliver pattern
• Barrier Housing Door ColorBlack background with sliver pattern
• Boom Pole Installation Height880 mm
• Body IndicatorsNone

• Barrier Gate General
• Rising/Falling Speed

  3m :

  Rising Speed: 3 S

  Falling Speed: 3 S

  2.5m-4.5m telescopic pole :

  Rising Speed: 3 S

  Falling Speed: 3 S

  3.4m-6m telescopic pole :

  Rising Speed: 6 S

  Falling Speed: 6 S

• Boom Pole DirectionLeft/Right
• Motor TypeDC brushless motor
• Matched Boom Pole TypeOctagonal boom pole
• Boom Pole Falling Delay1 to 99 s
• Number of Cycles2,500,000
• Consumption100 W
• Temperature and HumidityHumidity: ≤ 90%,Temperature: -30 °C to 80 °C (-22 °F to 176 °F)
• Rising Boom Pole for PoweroffOptional

• Package
• Barrier Housing Dimensions (L × W × H)325 × 220 × 1000 mm (12.8 × 8.67 × 39.37 inch)
• Body Weight26 ± 0.2 kg (57.32 ± lb.)
• Body Dimensions (with Package, Without Boom Pole) (L × W × H)385 × 305 × 1060 mm (15.16 × 12 × 41.73 inch)
• Body Weight (with Package, Without Boom Pole)29.1 ± 0.2 kg (64.15 ± 0.44 lb.)

• Barrier Gate
• Duty Cycle100>#/span###

• Interface
• RS-485Optional
• Rising to Limit1 group
• Falling to Limit1 group
• Open1 group
• Close1 group
• Stop1 group
• IR/Vehicle Detector/Radar1 group
• Traffic Signal Light1 group

• General
• Power Supply110-240VAC ( default 220V，Switchable )

• Approval
• ProtectionIP54

• Boom Pole
• Boom Pole ColorWhite background with red bar
• Boom Pole Weight

  4.5 m telescopic boom pole: 4.8 ± 0.2 kg

  6 m telescopic boom pole: 6.5 ± 0.2 kg

• Boom Pole Dimensions (with Package)

  4.5 m telescopic boom pole: 115 × 47 × 2530 mm (H×W×L)

  6 m telescopic boom pole: 115 × 47 × 3435 mm (H×W×L)

• Boom Pole Weight (with Package)

  4.5 m telescopic boom pole: 5.4 ± 0.2 kg

  6 m telescopic boom pole: 7.1 ± 0.2 kg

• Boom Pole DimensionsX × 44 × 110 mm (H×W×L)
• Boom Pole Material6063
