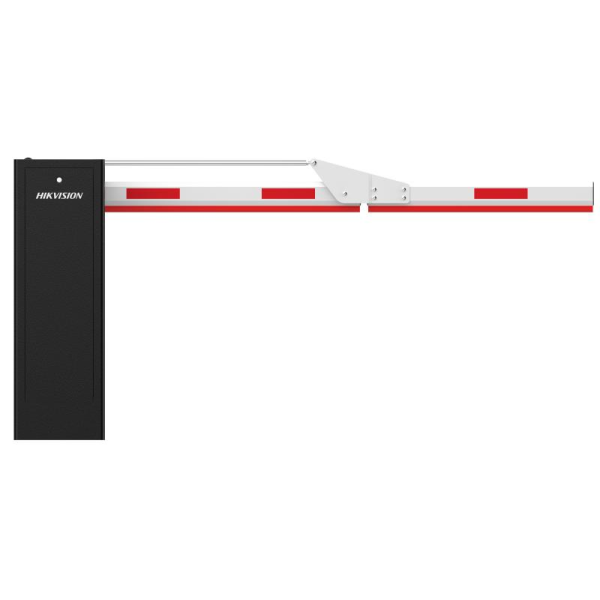

შლაგბაუმი, Hikvision, DS-TMG301-DR(2+2)

აღწერა შლაგბაუმი, Hikvision, DS-TMG301-DR(2+2)

• Barrier Housing
• Barrier Housing MaterialCold-rolled sheet
• Barrier Housing Thickness1.2 mm
• Barrier Housing Door Thickness1.0 mm
• Barrier Housing ColorBlack background with sliver pattern
• Barrier Housing Door ColorBlack background with sliver pattern
• Boom Pole Installation Height880 mm
• Body IndicatorsNone

• Barrier Gate General
• Rising/Falling Speed

  2m+2m folding pole ：

  Rising Speed: 3 to 6 s

  Falling Speed: 3 to 6 s

• Boom Pole DirectionLeft/Right
• Motor TypeDC brushless motor
• Matched Boom Pole TypeFolding boom pole
• Boom Pole Falling Delay1 to 99 s
• Number of Cycles2,500,000
• Consumption100 W
• Temperature and HumidityHumidity: ≤ 90
• Rising Boom Pole for PoweroffOptional

• Package
• Barrier Housing Dimensions (L × W × H)325 × 220 × 1000 mm (12.8 × 8.67 × 39.37 inch)
• Body Weight26 ± 0.2 kg (57.32 ± 0.44 lb.)
• Body Dimensions (with Package, Without Boom Pole) (L × W × H)385 × 305 × 1060 mm (15.16 × 12 × 41.73 inch)
• Body Weight (with Package, Without Boom Pole)29.1 ± 0.2 kg (64.15 ± 0.44 lb.)

• Interface
• RS-485Optional
• Rising to Limit1 group
• Falling to Limit1 group
• Open1 group
• Close1 group
• Stop1 group
• IR/Vehicle Detector/Radar1 group
• Traffic Signal Light1 group

• General
• Power Supply110-240VAC( default 220V，Switchable )

• Approval
• ProtectionIP54

• Boom Pole
• Boom Pole ColorWhite background with red bar
• Boom Pole Weight

  2 m + 2 m folding boom pole: 6.7 ± 0.2 kg

  1.5 m + 2.5 m folding boom pole: 6.4 ± 0.2 kg

• Boom Pole Dimensions (with Package)

  2 m + 2 m folding boom pole: 2260 × 200 × 110 mm（L×W×H）

  1.5 m + 2.5 m folding boom pole: 2750 × 200 × 110 mm（L×W×H）

• Boom Pole Weight (with Package)

  2 m + 2 m folding boom pole: 7.7 ± 0.2 kg

  1.5 m + 2.5 m folding boom pole: 7.3 ± 0.2 kg

• Boom Pole Dimensions

  4038 × 75 × 190 mm（L×W×H）

• Boom Pole Material6063
