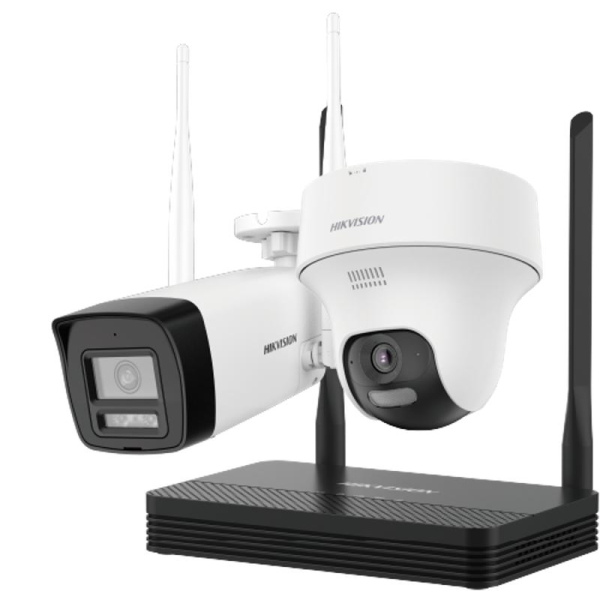

ჩამწერის და კამერების კომპლექტი DS-J142I-NKS424W02H WiFi NVS Kit

აღწერა ჩამწერის და კამერების კომპლექტი DS-J142I-NKS424W02H WiFi NVS Kit

Camera

• Camera Case TypeBullet;Turret
• Image Sensor1/2.7" Progressive Scan CMOS
• Min. Illumination

  Bullet：Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR

  Turret：Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0.005Lux @(F2.0, AGC ON), 0 Lux with IR

• Day &NightIR cut filter
• WDRDWDR
• Angle Adjustment

  Bullet: Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

  Turret: Pan: 0° to 350°,tilt: 0° to 75°

• Protection Level

  Bullet：IP66

  Turret：IP54

• MaterialPlastic
• Wi-Fi SupportYes

Camera/Lens

• Focal Length2.8 mm
• Aperture

  Bullet: F1.6

  Turret: F2.0

• FocusFixed
• FOV

  Bullet: horizontal FOV 94°, vertical FOV 49°, diagonal FOV 114°

  Turret: horizontal FOV 91.1°, vertical FOV 47.9°, diagonal FOV 110.8°

Camera/IR

• IR Range

  Bullet: Up to 30 m

  Turret: White light distance: up to 15 m,IR distance: up to 20 m

Camera/Compression Standard

• Video CompressionH.265;H.264;MJPEG
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• Video Bit Rate32 Kbps to 8 Mbps
• Audio CompressionG.711ulaw/AAC-LC
• Audio Bit Rate64 Kbps (G.711ulaw)/16 to 64 Kbps (AAC-LC)
• Audio Sampling Rate8 kHz/16 kHz
• Environment Noise FilteringYes

• Camera/Image
• Max. Resolution4MP
• Main Stream

  50 Hz：25 fps（2560 × 1440，1920 × 1080，1280 × 720）

  60 Hz：20 fps（2560 × 1440），24 fps（1920 × 1080，1280 × 720）

• Sub-stream

  50 Hz: 25 fps (768 × 432)

  60 Hz: 30 fps (768 × 432)

• Image SettingSaturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
• Day/Night SwitchAuto/Scheduled/Day/Night

Camera/Network

• Alarm TriggerMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
• ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv6, UDP, QoS, UPnP
• General FunctionOne-key reset, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Camera/Interface

• Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
• Reset ButtonYes

Camera/General

• Power Supply

  Bullet: 12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,A switching adapter is included in the package.

  Turret: 12 VDC ± 25%, reverse polarity protection, 0.75 A, max. 9 W, Ø5.5 mm coaxial power plug

• Consumption

  Bullet: ≤ 6 W

  Turret: ≤ 9 W

• Working Temperature

  Bullet: -30 °C to 60 °C (-22 °F to 140 °F)

  Turret: -10 °C to 40 °C (-14 °F to 104 °F)

• Working Humidity95% or less (non-condensing)
• Dimension (W × D × H)

  Bullet: 260.9 mm × 113.9 mm × 67.4 mm (10.3" × 4.5\" × 2.7\")

  Turret: Ø124 mm × 119 mm (Ø4.89 × 4.68\")"

• Bullet: 305 g (0.67 lb.)

  Turret: 290 g (0.6 lb.)

NVR/Video and Audio

• IP Video Input4-ch
• Incoming/Outgoing Bandwidth20 Mbps/20 Mbps

NVR/Decoding

• Video Resolution6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
• Synchronous Playback1-ch

NVR/Network

• Network Interface1, RJ45 10/100M Ethernet interface

NVR/Wi-Fi

• Frequency Band2.4 GHz
• Antenna StructureHigh gain antenna
• Transmission Speed150 Mbps
• Transmission StandardIEEE 802.11b/g/n/ax

NVR/Auxiliary Interface

• SD Card32G/64G/128G/256G/512G

NVR/General

• Power Supply12 VDC
• Consumption (without HDD and PoE off)≤ 6 W
• Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity10% to 90>#/span###
• Dimension (W × D × H)163 x 125 x 26 mm (6.4" × 4.9" × 1.0")
• Weight (without hard disk)≤ 500g

Kit

• Accessories

  Power adaptor: 2 × IPC power adaptor, 1 × NVS power adaptor

  Ethernet cable: RJ45, Cat5e UTP, 1 m

• CertificationCB, CE
• Weight (with package)≤ 2 kg (4.4 lb)
