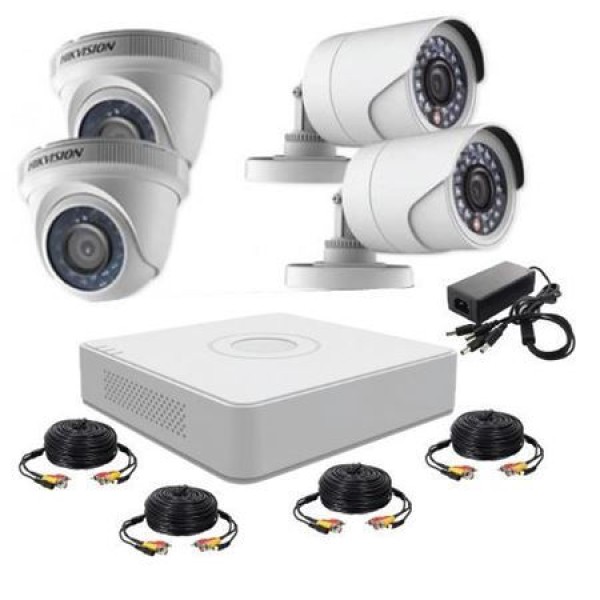

DS-J1421/7108HQHI-K1+8CAM

Description DS-J1421/7108HQHI-K1+8CAM

Recording
Video compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding resolution when 1080p Lite mode is enabled: ,4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF;,when 1080p Lite mode is enabled: ,4 MP lite/3 MP/1080p lite/720p lite /VGA/WD1/4CIF/CIF
Frame rate Main stream:,When 1080p Lite mode is not enabled:,For 4 MP streaming:,4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N), For 3 MP streaming: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps, For 1080p streaming:,1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N), 720p streaming access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N), when 1080p Lite mode is enabled: 4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N), Sub-stream: ,WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
Video bitrate from 32 Kbps to 6 Mbps
Dual stream support
Stream type: Video, Video and Audio
Audio compression G.711u
Audio bit rate 64 Kbps
Video and audio
IP video input 4-ch (up to 12-ch) up to 6 MP resolution support H.265+/H.265/H.264+/H.264 IP cameras
Analog video input 8-ch BNC interface (1.0 Vp-p, 75 Ω), supports coaxial connection
AHD input 4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI input 1080p25, 1080p30, 720p25, 720p30
CVBS input support
Audio input 1-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio output 1-ch, RCA (linear, 1 KΩ)
Two-way audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using first audio input)
Synchronous playback 8-ch
HDTVI Input 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60,*: 3 MP signal input is only available for DS-7104HQHI-K1,HDS1,HQHI-K1,HDS1,HQHI-K201,HDS1,HQHI-K1-K1,
VGA/HDMI output 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
Network
Remote connections64
Network protocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network interface1, RJ45 10M/101M self-adaptive Ethernet interface
Helper interface
SATA1 SATA interface
Capacity Up to 6 TB capacity for each drive
Alarm input/output N/A
USB interface real panel: 2 × USB 2.0
General
Power supply 12 VDC
Consumption (without HDD) ≤ 12 W
Operating temperature -10 °C to +55 °C (+14 °F to +131 °F)
Working humidity 10% - 90%
Dimensions (W × D × H) 200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inches)
Weight (without HDD) ≤ 1 kg (2.2 lb)
