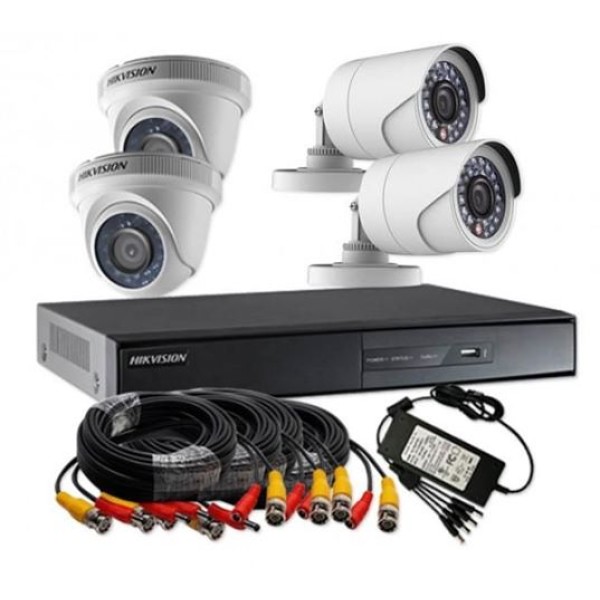

DS-J1421/7204HGHI-F1+4CAM

Description DS-J1421/7204HGHI-F1+4CAM

Recording
Video compression H.264+/H.264
Encoding resolution when 1080p Lite mode is not enabled: 720p/WD1/4CIF/VGA/CIF when 1080p Lite mode is enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF
Frame rate Main stream: ,When 1080p Lite mode is enabled:,720p streaming access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),When 1080p Lite mode is enabled:,1020p Lite/7 WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),Sub-stream:,2CIF@6fps; CIF/QVGA/QCIF@ 25fps (P)/30fps (N),
Video bitrate from 32 Kbps to 4 Mbps
Dual stream support
Stream type: Video, Video and Audio
Audio compression G.711u
Audio bit rate 64 Kbps
Video and audio
IP video input 1-ch (up to 5-ch) up to 960p resolution H.264+/H.264 IP cameras supported
Analog video input 4-ch BNC interface (1.0 Vp-p, 75 Ω), supports coaxial connection
Turbo HD input 1080p25, 1080p30, 720p25, 720p30
AHD input 1080p25, 1080p30, 720p25, 720p30
HDCVI input 1080p25, 1080p30, 720p25, 720p30
CVBS input support
Audio input 1-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio output 1-ch, RCA (linear, 1 KΩ)
Two-way audio reuse first audio input
Synchronous playback 4-ch
VGA/HDMI output 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
Network
Remote connections32
Network protocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Network interface1, RJ45 10M/100M self-adaptive Ethernet interface
Helper interface
SATA1 SATA interface
Capacity Up to 6 TB capacity for each drive
Alarm input/output N/A
USB interface rear panel: 2 × USB 2.0
General
Power supply 12 VDC
Operating temperature -10 °C to 55 °C (14 °F to 131 °F)
Working humidity 10% - 90%
Weight (without HDD) ≤ 1 kg (2.2 lb)
Consumption (without HDD) ≤ 8 W
Dimensions (W × D × H) 260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inches)
