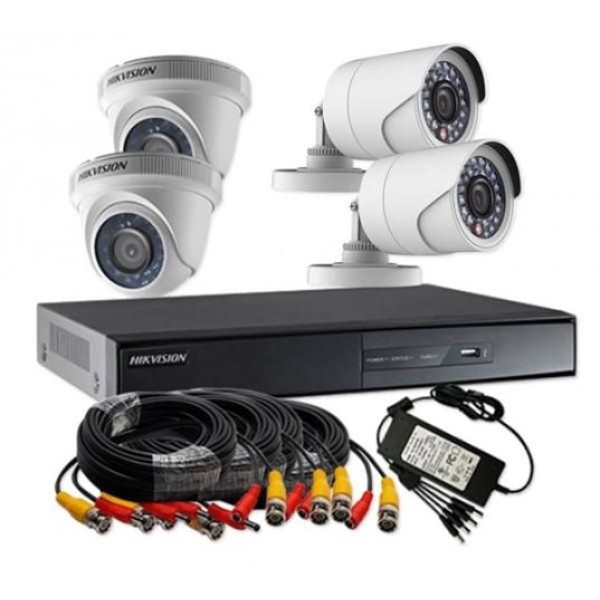

DS-J142I/7104HGHI-F1+4CAM

Description DS-J142I/7104HGHI-F1+4CAM

External interface
Network interface 1×100 Mbps
USB interface rear panel: 2 × USB 2.0
Video/Audio Input/Output
Video inputHDTVI, AHD, CVI, CVBS, IP
Recording
Encoding resolution
When 1080p Lite mode is not enabled: 720p/WD1/4CIF/VGA/CIF

When 1080p Lite mode is enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF

Frame rate Main stream: When 1080p Lite mode is not enabled: 720p Streaming access: 720p/WD1/4CIF/VGA/CIF@25fps(P)/30fps(N) When 1080p Lite mode is enabled: 1080p lite/DWW/7120CIF VGA/CIF@25fps(P)/30fps(N) Sub stream: 2CIF@6fps; CIF/QVGA/QCIF@25fps(P)/30fps(N)
Audio compression G.711u
Video and audio
IP video input
1-ch (up to 5-ch)

Up to 1080P resolution

H.264+/H.264

Analog video input
4-ch

BNC interface (1.0 Vp-p, 75 Ω), supports coaxial

Audio input 1-ch, RCA (2.0 Vp-p, 1 KΩ)
Two-way audio 1-ch, RCA (2.0 Vp-p, 1 KΩ)
VGA/HDMI output 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz HDMI and VGA simultaneous output
Helper interface
SATA1 SATA interface
Capacity Up to 6 TB capacity for each drive
Camera
Lens 70.9°, 3.6 mm
Image sensor 1 MP CMOS image sensor
General
Operating condition
DS-2CE16C0T-IRP: -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensing)

DVR: -10 °C to 55 °C (14 °F to 131 °F), Humidity: 10% to 90%>#/p###

Power consumption max. 4 W
Protection level IP66
IR range up to 20 m
Dimensions
DS-2CE16C0T-IRP: Φ70 × 149.5 mm (Φ2.76 × 5.89 inches)

DVR: 200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inches)

Weight
DS-2CE16C0T-IRP: 300 g (0.66 lb)

DVR: ≤ 0.8 kg (1.8 lbs)

Kit: ≤ 5.2 kg (11.4 lbs)
