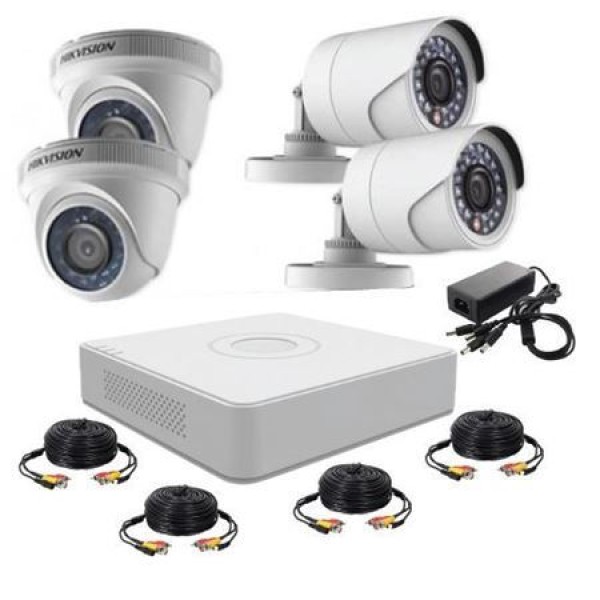

DS-J142I/7104HQHI-K1+4CAM

Description DS-J142I/7104HQHI-K1+4CAM

External interface
Network interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
USB interface rear panel: 2 × USB 2.0
Video/Audio Input/Output
Video inputHDTVI, AHD, CVI, CVBS, IP
Recording
Encoding resolution
When 1080p Lite mode is not enabled:

4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF;

When 1080p Lite mode is enabled:

4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF

Frame rate
Main stream:

When 1080p Lite mode is not enabled:

To access the 4 MP stream:

4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps(P)/30fps(N)

To access the 3 MP stream:

3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps

To access 1080p streaming:

1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps(P)/30fps(N)

To access 720p streaming:

720p/VGA/WD1/4CIF/CIF@25fps(P)/30fps(N)

When 1080p Lite mode is enabled:

4 MP lite/3 MP@15fps;

1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps(P)/30fps(N)

Substream:

WD1/4CIF@12fps; CIF@25fps(P)/30fps(N)

Audio compression G.711u
Video and audio
IP video input
2-ch (up to 6-ch)

Up to 6 megapixels

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Analog video input
4-ch

BNC interface (1.0 Vp-p, 75 Ω) supports coaxial connection

Audio input 1-ch
Two-way audioRCA (2.0 Vp-p, 1 KΩ)
VGA/HDMI output
1-q, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz

HDMI and VGA simultaneous output

Helper interface
SATA1 SATA interface
Capacity Up to 6 TB capacity for each drive
Camera
Lens 82.2°, 3.6 mm
Image sensor 2 MP CMOS image sensor
General
Operating condition
DVR:

-10 °C to 55 °C (14 °F to 131 °F), Humidity: 10% to 90% RH

Camera:

-40 °C – 60 °C (-40 °F – 140 °F), humidity 90% or less (non-condensing)

Power consumption max. 4 W
Protection level
DS-2CE16D0T-IRP

IP66

IR range up to 20 m
Dimensions
DVR:

200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inches)

Weight≤ 3.3 kg (7.3 lb)
