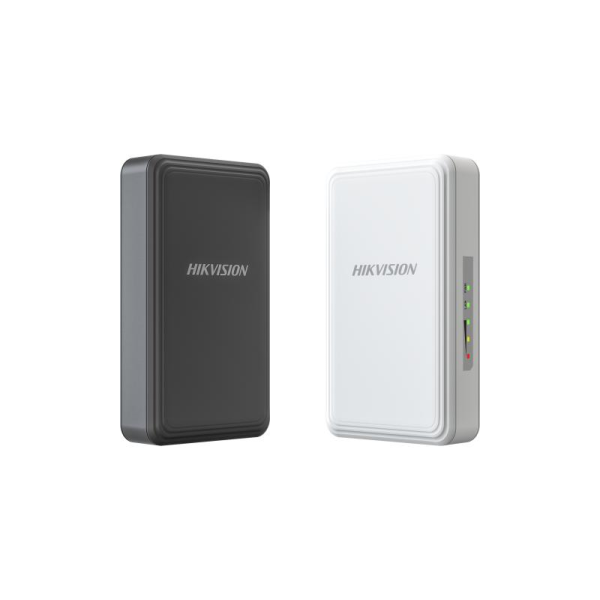

ლიფტის უკაბელო მიმღებ გადამცემი (წყვილი)DS-3WF0BC-2NT(B)

აღწერა ლიფტის უკაბელო მიმღებ გადამცემი (წყვილი)DS-3WF0BC-2NT(B)

• General
• Product Dimensions (W × H × D)90.8 mm × 187.87 mm × 57.87 mm (3.57'' × 7.39'' × 2.27'')
• Package Dimensions (W × H × D)256 mm × 231 mm × 86 mm (10.07" × 9.09" × 3.38")
• Net Weight0.26 kg (0.57 lb) per device
• Gross Weight0.8 kg (1.76 lb)
• Packing ListWireless Bridge × 2,Power Adapter (12 VDC, 1 A) × 2,10/100 Mbps PoE Injector × 2,Binding Tape × 4,Quick Start Guide ×1
• Packing MethodPacking in pairs
• Working Temperature-30 °C to 70 °C (-22 °F to 158 °F)
• Working Humidity5% to 95% (no condensation)
• Storage Temperature-40 °C to 80 °C (-40 °F to 176 °F)
• Storage Humidity5% to 95% (no condensation)
• >span class="tech-specs-items-description__title-details">Pole Mounting
• Ingress ProtectionIP55
• Power Consumption1.89 W for typical (1-ch 2MP IPC), Max. 3.7 W

• Wireless Parameter
• Max. Transmission Rate of Air Interface≤ 300 Mbps
• Wireless StandardIEEE 802.11b/g/n (2 × 2 MIMO 300 Mbps)
• Working Frequency Band2400 MHz ~ 2483.5 MHz
• Antenna Gain7 dBi
• Antenna Angle(H) Beamwidth [3 dB] 65° (V) Beamwidth [3 dB] 65°
• Transmitting Power19±2 dBm (Note: Transmitting power may vary with local regulations.)
• Receiving Sensitivity-68 ± 2 dBm @HT40 MCS7
• >span class="tech-specs-items-description__title-details">Point to point: Support up to 6-ch IPC (2MP) in Max. 0.2 KM distance and Max. 30 Mbps bandwidth

• Hardware Parameter
• Network Interface2 × 10/100 Mbps RJ45 ports
• LED IndicatorPower indicator,LAN indicator,Signal intensity indicator
• ResetHardware resetting button
• Power Supply12-24 VDC Passive PoE

• Software Function
• Application FunctionIFM,IPM
• Channel Width10/20/40 MHz
• Channel SelectionAuto/manual selection
• Network ProtocolNTP (network time synchronization),SADP (auto search for IP address),HTTPS (web management),SSH (debugging)
• Security ModeWPA2-PSK
• Security MechanismWireless network name hidden
• Management MethodWeb,iVMS-4200,HCP
• UpgradeWeb,iVMS-4200,HCP
• System LogSyslog,Control center information

• Approval
• EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
• SafetyCB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017)
• ChemistryCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
• RadioEN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17
