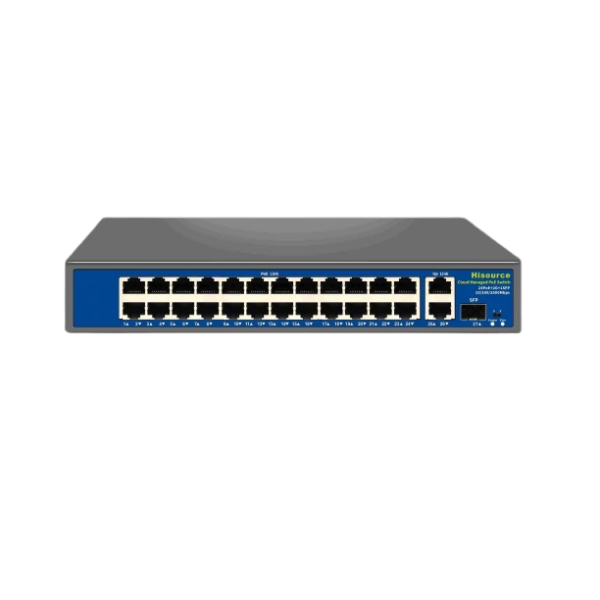

Hi-S21-24GP2G1S 24-Port Gigabit Managed PoE Switch with 4×1000Mbps Uplinks

Description Hi-S21-24GP2G1S Gigabit 24 Port Managed PoE Switch with 4*1000Mbps

Hisource Hi-S21-24GP2G1S | 24+2+1 Full Gigabit Managed (L2) PoE Switch

Brief Description: Hisource Hi-S21-24GP2G1S is an L2 level, cloud-managed PoE network switch. Equipped with a high-performance hardware and software platform, it adopts a 4M large cache chip and supports essential L2 management functions such as VLAN, QoS, IGMP Snooping, and PoE management. With a maximum power consumption of 400W, it ensures stable power and uninterrupted connectivity for multiple devices across scale deployments.

Main Advantages:

• Flexible Management: Cloud management and L2 function support for effective network administration.

• High Bandwidth: 54Gbps switching capacity and a packet forwarding rate of 40.18Mpps with full gigabit speeds.

• Strong PoE Support (370W Budget): Provides standard IEEE802.3af/at power with a maximum output of up to 30W per port.

• Long-Distance Transmission: Capable of transmitting power and data over distances up to 250 meters (≤250m).

  • Model Number: Hi-S21-24GP2G1S

  • Network Type: Cloud-managed (L2)

  • Transmission Speed: 10/100/1000 Mbps (Full Gigabit)

  • Communication: Full-duplex (IEEE802.3X) and Half-duplex (Backpressure) adaptive

  Port Configuration

  • Total Number of Ports: 27 Ports

  • Port Details:

    • 24 x 10/100/1000Mbps PoE ports (RJ45)

    • 2 x 10/100/1000Mbps RJ45 Uplink ports

    • 1 x 1000Mbps SFP fiber slot

  Technical Specifications

  • Power Supply: AC 110~240V (Total machine power consumption 400W)

  • Functionality: PoE Standards (IEEE 802.3af/at), VLAN, QoS, IGMP Snooping, Network Standards (IEEE802.3, 802.3u, 802.3x, 802.3ab, 802.1Q, 802.1p)

  • MAC Table: 8K (MAC automatic learning and aging)

  • Operating Temperature: -10°C to +55°C (Humidity 10% to 90%)

  • Protection Level: Lightning Protection 4KV

  Physical Specifications

  • Dimensions: 270 x 181 x 44 mm

  • Weight (net): < 1.7 kg

  • Storage Environment: -40°C to +85°C (Humidity 5% to 95%)
