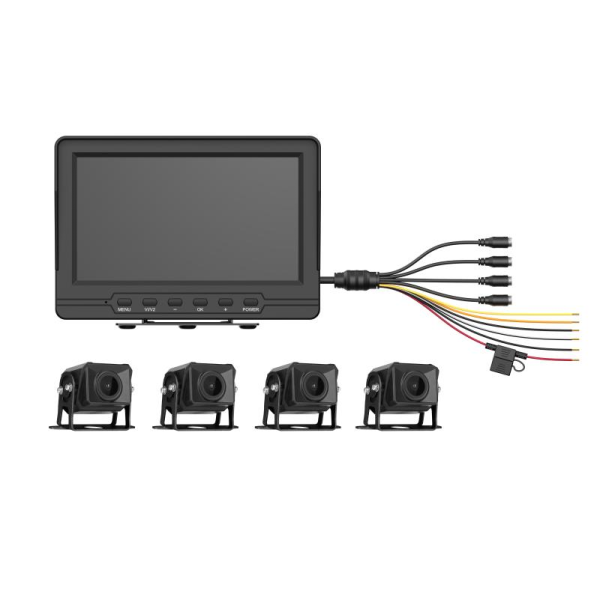

Automotive Systems Camera and Monitor Set AE-VD2501A-A

Description Automotive Systems Camera and Monitor Set AE-VD2501A-A

Camera
Resolution 1920 × 1080
Min. Illumination0.1 Lux @ (F1.2, AGC ON)
Case TypeSquare Camera
Lens
FOV horizontal: 103°, vertical: 55°
Day/night switch color
Interface
Local storage
Video storage support

Support video recording overwrite

SD Card Storage supports up to 512G TF card from Hikvision
Communication interface
Screen:

4 4-core aviation head interface, support 4-way 1080p camera access

3 IO input interfaces, support access to left, right turn, reverse signal

1 TF card slot, supports access to one TF card

Camera:

4-core aviation head interface

General
Product dimension
Screen: 186.51 mm * 139.38 mm * 136.98 mm (with bracket)

Camera: 65.00mm*43.00mm*37.86mm (with bracket)

Power 1.35A Max
Power supply DC 9V-36V
Power consumption 12 W MAX
Camera protection: IP68
Language English
Cable length
Screen: 2700 mm

Camera: 480±50 mm (without connector)

Accessory
Standard 1 screen mount with screws;

Standard with 1 x 64G TF card;

Standard 4 x 1080P cameras come with a bracket and mounting screws;

With standard 3 x 5 meter camera extension cables;

With standard 1 x 15 meter camera extension cable;

Operating temperature -20℃~+70℃ (-4℉~158℉)
Operating humidity10%~80>#/span###
Parking monitoring
Parking monitoring with support Parking monitoring after turning off the car
Play
Playback Support for playing videos directly on the screen
Review
Review
Support quick display image at power-on

Multi-channel display support

Support for multiple display modes

Screen
Screen resolution 1024 × 600
Brightness 250-350cd/m2, adjustable
Screen/Keys
6 keys, support menu, edit, previous, confirm, next and rest
Screen/Size
Size 7", LED
