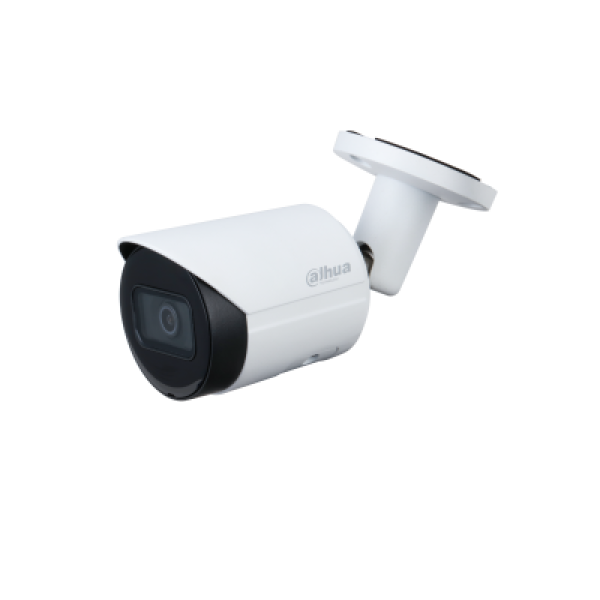

Dahua DH-IPC-HFW2230SP-S-0360B-S2-QH3 Camera

Key Features & Performance

This 2MP IP network camera provides advanced surveillance with its high-resolution sensor, smart features, and flexible installation.

The camera features a 1/2.7" progressive CMOS sensor with a maximum resolution of 1920x1080. It excels in low-light conditions with a minimum illumination of just 0.005 Lux and has a single IR LED that provides night vision up to 30 m. The camera uses Smart Codec technology, which supports both H.265 and H.264 compression to reduce bandwidth and storage consumption. It also includes Intelligent Video Surveillance (IVS) features such as Tripwire and Intrusion detection.

Lens & DORI Distances

The camera offers two fixed-focal lens options: 2.8mm and 3.6mm, both with a wide F1.6 aperture.

• With the 2.8mm lens, you can detect objects up to 37.3 m away, observe up to 14.9 m, recognize up to 7.5 m, and identify up to 3.7 m.

• With the 3.6mm lens, you can detect up to 53.3 m, observe up to 21.3 m, recognize up to 10.7 m, and identify up to 5.3 m.

Connectivity & Installation

This camera supports both PoE and a 12V DC power supply. It connects to the network via an RJ-45 port and includes a micro SD card slot that supports up to 256 GB of edge storage. It also supports major management software and mobile clients. The camera's flexible design allows for 360° pan, 90° tilt, and 360° rotation for easy and precise installation.
