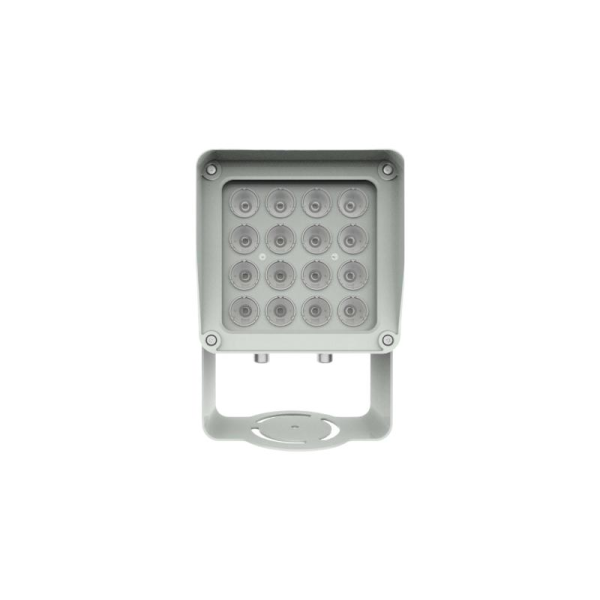

Infrared lamp DS-TL2000AI-L1

Description Infrared lamp DS-TL2000AI-L1

Add lighting
Light type: IR illumination
Light angle 10°
IR wavelength 850 nm
Coverage1 band(s)
LED lamp beads 16
Center lighting 800 mW/㎡
Effective distance from 16 to 25 m
Trigger MannerTTL level (switch optional)
Trigger level 4 to 6 V (high level trigger)
Trigger duty ratio from 1% to 39% (enter the protection condition in Duty Radio ≥ 40%)
Color temperature from 2800 K to 3200 K
Response time≤ 20 us
Trigger frequency from 15 to 250 Hz
Service life ≥ 50,000 hours
General
Power
AC 100 V to 240 V, 0.18 A, 39.8 W, 3-core terminal block

Material: Aluminum alloy
Dimensions 128 mm × 216 mm × 159 mm (5.0" × 8.5" × 6.3") (L × W × H)
Package dimensions 290 mm × 247 mm × 230 mm (11.42" × 9.72" × 9.05") (L × W × H)
Weight approx. 2.8 kg (6.17 lbs)
Package weight approx. 3.87 kg (8.53 lbs)
Operating conditions: -40 °C to 70 °C (-40 °F to 158 °F). Humidity: 10% to 90% (non-condensing)
Storage conditions -40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing)
Approval
EMCEN 50130-4:2011+A1:2014, EN 55032:2015+A11:2020+A1:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN:2019-61 +A1:2021
Security
CE-LVD: EN 60598-1, EN 60598-2-5, EN 62031, CB: IEC 60598-1:2020, IEC 60598-2-5:2015, IEC 62031:2018, IEC 8206

Environment
CE-RoHS: 2011/65/EU,

WEEE: 2012/19/EU,

Achievement: Regulation (EC) No 1907/2006

Protection
IP66: IEC 60529: 1989+A1: 1999+A2: 2013
