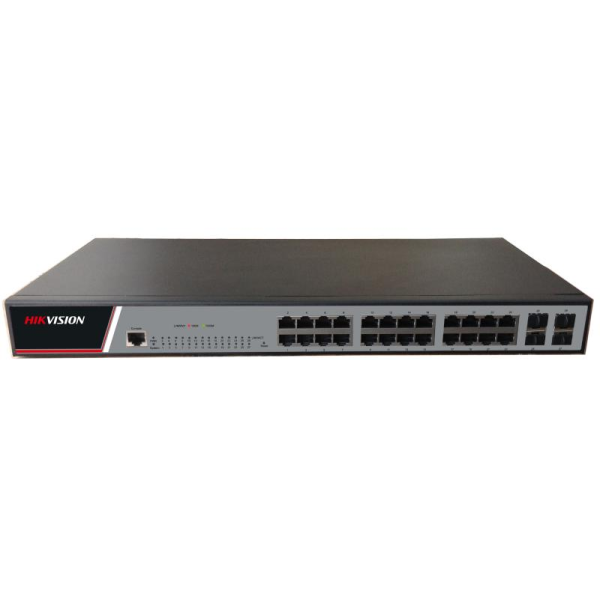

Switch DS-3E2528

Description Switch DS-3E2528

General
Net weight 2.68 kg (5.91 lbs)
Total weight 3.6 kg (7.94 lbs)
Dimensions (W × H × D) 440.00 mm × 45.00 mm × 230.00 mm (17.32'' × 1.77'' × 9.06'')
Operating temperature 0 °C to 45 °C (32 °F to 113 °F)
Operating humidity 5% to 95% (non-condensing)
Power supply 100-240 VAC, 50 Hz ± 10>#/span###
Power consumption < 15W
Network settings
MAC address table8K
Ports 24 × 1 Gigabit RJ45 ports, 4 × 1 Gigabit fiber optic ports
Switching capacity
Overall device performance: 56 Gbps

Port performance: 56 Gbps

Packet forwarding speed
Overall device performance: 41.66 Mpps

Port performance: 41.66 Mpps

Software function
VLAN4K VLAN, GVRP, QinQ, Private VLAN
QoS
Flow classification based on L2 to L4 protocols

Car flow limit

802.1P/DSCP Priority Re-Marking

SP, WRR and SP+WRR\"

Congestion avoidance mechanisms such as Tail-Drop and WRED

Flow monitoring and flow shaping

Multicast
IGMP v1/v2/v3

IGMP snooping

IGMP Fast Leave

Multicast group strategy and quantity limitation

Management method
Console, Telnet, SSH2.0, Web

SNMP v1/v2/v3

TFTP

RMON

Security
L2/L3/L4 ACL flow identification and filtering

DDoS attack prevention, TCP's SYN Flood attack prevention, UDP Flood attack prevention, etc.

Broadcast/multicast/unknown unicast storm control

Port isolation

Port security and IP+MAC+Port\"Required"

Approval
EMCFCC (ANSI C63.4, 47 CFR PART 15B); CE-EMC/RCM (EN 55032: 2015+A11:2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4:20111+A 55035:2017+A11:2020); IC (ICES-003: Issue 22)
Safety UL (UL 62368-1); CB/RCM (IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2032)
ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2021)
