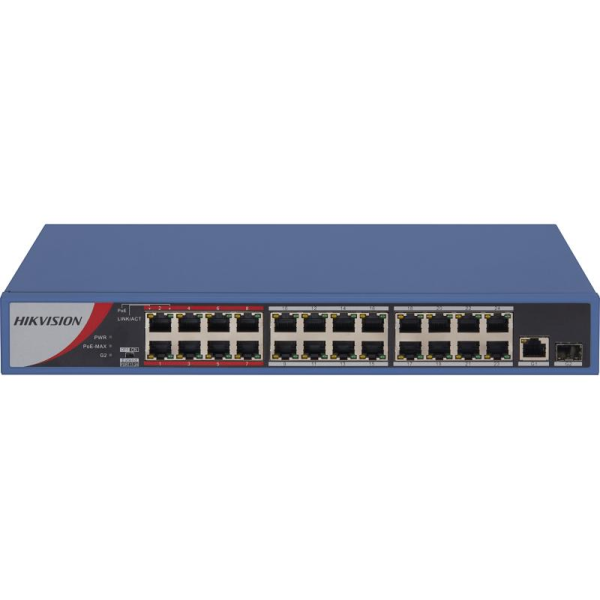

Switch POE DS-3E0326P-E/M (B)

Description Switch POE DS-3E0326P-E/M (B)

General
Dimensions (W × H × D) 335 mm × 44.5 mm × 226 mm (13.2" × 1.8" × 8.9")
ShellMetal material
Total weight 3.33 kg (7.34 lbs)
Net weight 2.55 kg (5.60 lbs)
Operating temperature -10 °C to 55 °C (14 °F to 131 °F)
Operating humidity 5% to 95% (non-condensing)
Storage temperature –40 °C to 85 °C (–40 °F to 185 °F)
Storage humidity 5% to 95% (non-condensing)
Power supply 100 to 240 VAC, 50/60 Hz, max. 4 A
Power consumption in idle mode 20 W
Max. power consumption 250 W
Network settings
Ports 24 × 10/100 Mbps PoE ports, 1 × Gigabit RJ45 port and 1 × Gigabit fiber optic port
Port TypeRJ45 port, full duplex, MDI/MDI-X compatible
Working mode Standard mode (default); Extended mode
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Redirection ModeStore-and-forward switch
High priority ports 1 to 8
MAC address table4K
Switching capacity 8.8 Gb/s
Packet forwarding speed 6.547 Mpps
Internal cache 2.75 MB
PoE power supply
PoE Standard IEEE 802.3af, IEEE 802.3at
PoE Power Pin
Last range: 1/2(-), 3/6(+)

Midrange: 4/5 (+), 7/8 (-)

8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)

PoE ports 1 to 24
Max. port power 30 W
PoE power budget 230 W
Typing function
Long-distance ports 17 to 24: up to 300 m; and port speed 10 Mbps.
Approval
EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Edition 6, 2016)
Safety UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
